Automotive Industrial Die Casting Mold

ALUMINUM DIE CASTING MOLD FOR VOLKSWAGEN

Product Material: AL380
Product Size (LxWxH): 173.68x175.17x54.32mm
Product Size (LxWxH): 173.67x175.74x55.62mm
Product Industry: Auto industry ( used for Top cover of auto air conditioning compressor)

Qty Of Cavity: 2+2
Qty Of Slider: 0
Mold Type: 2-Plate mold
Machine Tons: 550Ton
Mold Size (mm): 880x720x470
Lead Time: 32 days

PROJECT DETAILS

Project Management

1, RFQ & Quote

CAMEL provide quote within 1-2 working days. And provide DFM and mold flow if needed.

2, DFM & Moldflow

CAMEL provide DFM and Moldflow within 3 working days.

Die Casting Parts Analysis Report
Moldflow Analysis Report

3, Mold Design & Design Review

Usually 3D mold drawing for 1 set mold submit within 2-3 working days. and 3-5 sets mold drawing provide within 1 week . CAMEL do care about lead time.

Design review to ensure all requirements completed and correctly before send out mold drawing .

Design Review

4, Tooling Schedule & Week report

CAMEL provide the first schedule within 24 hours after get customer approve for order& cut steel, and update scheudle with processing pictures on each Monday.

And send project tracker with all sets molds status(Still processing) on each Thursday.

5, Trial Report & FAI Report

Mold trial report will be provided within 24 hours after mold trial, there has picture showing the mold running status and sample's status in trial report, And provide trial video and parameter together.

FAI report of casting sumbit within 72 hours after finish mold trial.

Inspecting Casting FAI Report

6, Sample approval and Mold Shipment

1) Provide X-ray inspecting report to ensure casting quality.

2) Ship casting within 24 hours after finish trial, and provide waybill in timely.

3) After samples approval and shippment informed. According to Mold checking list to ensure all requiremets completly and correctly to ship to our clients.

X Ray Report
Trial Review

7, After-Service

CAMEL have 3 cooperated after-service location at Europe (Austria ,Slovenia), and 5 cooperated after-service location at Unit States (MI,IN,TX).

CAMEL be responsible for the mold production smoothy during mold life.

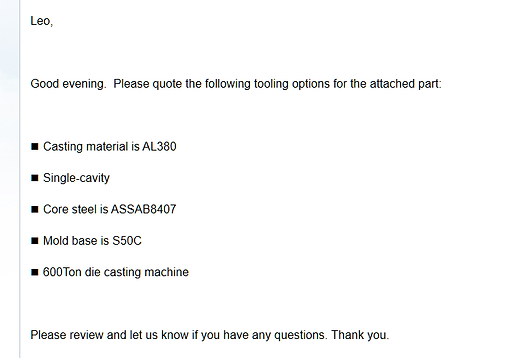

1. RFQ
