How to Make Die Cast Molds?




The standardized mold production process is one of the core competitiveness in mold manufacturing.

From mold order to mold output, it takes about dozens of steps; The key steps of making die cast molds organized are as follows.


Order Preliminary Review Final Mold Structure Review Design Review Of Die Casting Mold; Design Review Of Trim Mold Manufacturing Review Mold Components Inspection; Mold Steel Hardness Inspection Mold Base Inspection Report Cavity & Core Inspection After CNC Mold Electrode Inspection Cavity & Core Inspection After Wire Cut Cavity & Core Inspection After EDM Mold Pre-Assembly Inspection Trial Review Sample Inspection Report Die Casting Die Checking List Trim Die Checking List; Inspection Qualified Notice

Read More Details


Design Review Of Die Casting Mold


In the molding process, it is the Die that is key for productivity and part quality. Both precision and dimensional accuracy are needed to efficiently produce high-quality castings. Particularly during the casting process, the runner design and heat energy control prove to be essential factors for achieving the highest productivity and part quality.

It is the CAMEL’s job to develop, and build dies that support best-in-class cycle-time, part quality, and die life. Tempering must be done before the mold trial to guarantee the die life.

Before mold production, The design of die casting dies is also a top priority.

Mold 3D Drawing-CAMEL
Mold 3D Drawing-CAMEL
Mold 3D Drawing-CAMEL
Mold 3D Drawing-CAMEL
Die Cast Molds-CAMEL
Die Cast Molds-CAMEL

We always do flow simulation by designing many kinds of runner layouts to get the best productivity and part quality. This way most of our die casting dies can be sampled successfully the first time.

Overflow-CAMEL
Overflow-CAMEL











The preliminary flow simulation below appears to show that the overflow speed is too fast and may cause a high risk of mold flush issues. We reduced the area of overflow to control the speed and ensure a better cast and mold quality.

Preliminary Version-CAMEL
Preliminary Version-CAMEL
Optimizing Version-CAMEL
Optimizing Version-CAMEL

Balanced Heat Energy

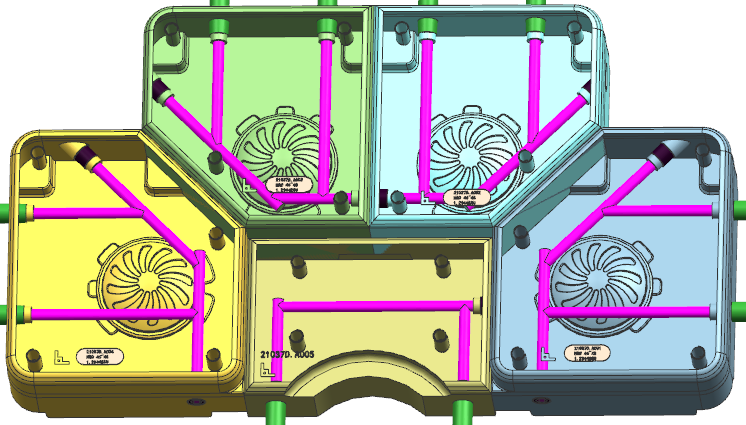

CAMEL designs ample cooling lines to control the heat energy balance to get the best cycle-time and part quality. The balanced heat energy also lowers the risk of die cracking.

Fixed Side-CAMEL
Fixed Side-CAMEL
Movable Side-CAMEL
Movable Side-CAMEL

Die Casting Parts

Overflow is the essential factor for achieving the best part quality. We design all venting separately to ensure that venting can run smoothly and efficiently. This way parts will have a much lower risk of cold lap issues.

Die Casting Parts-CAMEL
Die Casting Parts-CAMEL
Die Casting Parts-CAMEL
Die Casting Parts-CAMEL

Multi-cavity Trim Dies

Trim dies are indispensable tools for high quantity production. Unprofessional mold makers need to adjust the multi-cavity trim die many times by welding.

CAMEL designs all support blocks, cutters, guide pins, and guide bushes separately for each cavity. We also design separate locating components to control the runner deformation.

This way most of our multi-cavity trim dies can be trimmed successfully the first time.

Multi-cavity Trim Dies-CAMEL
Multi-cavity Trim Dies-CAMEL
Multi-cavity Trim Dies-CAMEL
Multi-cavity Trim Dies-CAMEL
